(ENG) e-Cook - Installation, Servicing and User Instructions

Compliance with European standards
EN 298:2003

e-Cook

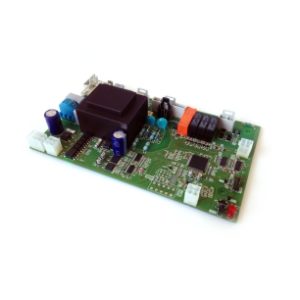

MTE57

Electronic board for gas burners.

Preserves itself most of the features of the MTE35 , at least in the management of the gas burner.

Features :

• Can handle up to two temperature probes for detecting the temperature of the cooking medium in the tank;
• The ignition is automatic and takes place by means of two electrodes, one for each burner;
• Making the flame detection independently on the two burners;
• Constantly monitors the surface temperature;
• Can detect the ambient temperature or in particular areas of the machine via two other inputs probes (NTC );
• Can drive premix fans who have control driver on the motor;
• You can connect to a card user interface or PC;
• If you want to use a ' very simple user interface , you can use two knobs to control attachable to the board;
• Is able to handle cooking cycles divided by temperature thresholds set from the user interface or from generic remote control.

The board MTE57 and its functionality can be customized according to customer requirements.

APPLICATIONS

Gas Fryers premix or in room air and electric pasta cookers.
